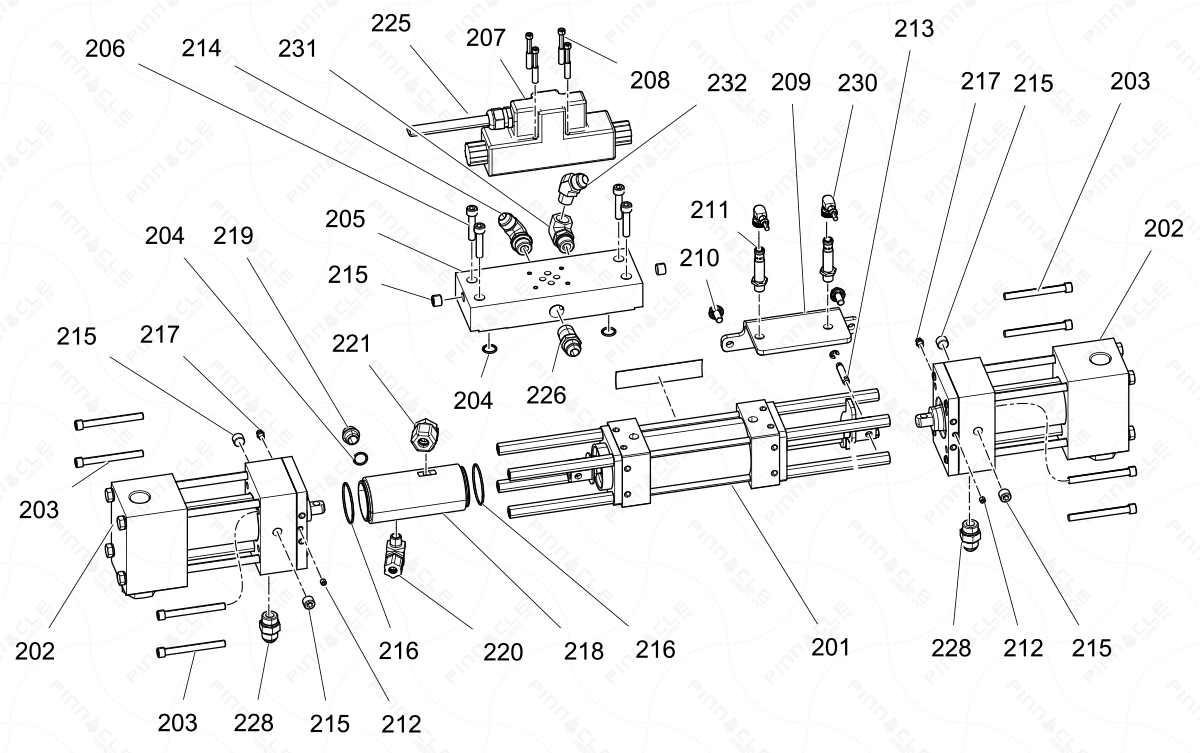

Reactor 2 H-30 Proportioner Assembly Exploded Diagram

Grouped product items
No. Item No. Product Name Price Qty
201 17G499 KIT, CYLINDER, HYD, W/SPACERS
$3,860.00
202 17G598 KIT, PROPORTIONER, 140
$8,529.20
203 295824 SCREW, SHC, 5/16-24 X 3" LG
$14.40
204 112793 PACKING, O-RING
$8.10
205 17G531 KIT, MANIFOLD, HYD, HR2
$915.00
206 113467 SCREW, CAP, SOCKET, HD
$6.75
207 120299 VALVE, DIRECTIONAL, HYDRAULIC
$963.00
208 C19986 SCREW, CAP,SH,10-24 X 1.75
$13.80
210 111800 SCREW, CAP, HEX HD
$6.20
211 17G605 KIT, PROX SENSOR
$385.00
212 M70430 SCREW, SS, CUP, 1/4-28 X .19
$5.60
213 296653 KIT, PIN, CLEVIS
$180.00
214 121312 FITTING, ELBOW, MA, 3/4 SAE X 1/2 JIC
$16.70
215 295225 PLUG, PIPE, FLUSH
$9.25
216 106258 PACKING, O-RING
$12.50
217 295229 FITTING, GREASE, 1/4-28
$5.20
218 261863 KIT, LUBE CYLINDER AND PLATE
$299.50
219 295829 FITTING, PLUG, 3/8 MPT X .343
$14.40
220 295826 FITTING, ELBOW, 90, 1/4 MPT X 3/8" T
$22.50
221 295397 FITTING, ELBOW, 3/8 MPT X 1/2"
$44.30
225 17G690 KIT, HARNESS, VALVE, SOLENOI, HR2
$539.00
226 121319 FITTING, ADAPTER, 1/2NPT X 1/2JIC
$14.00
228 121309 FITTING, CONN, 3/4 SAE X 1/2 JIC
$9.45
230 17G669 KIT, CABLE, GCA
$356.00
232 122533 FITTING, 45 DEG ELBOW #8 JIC X 3/8 NPT
$12.20
