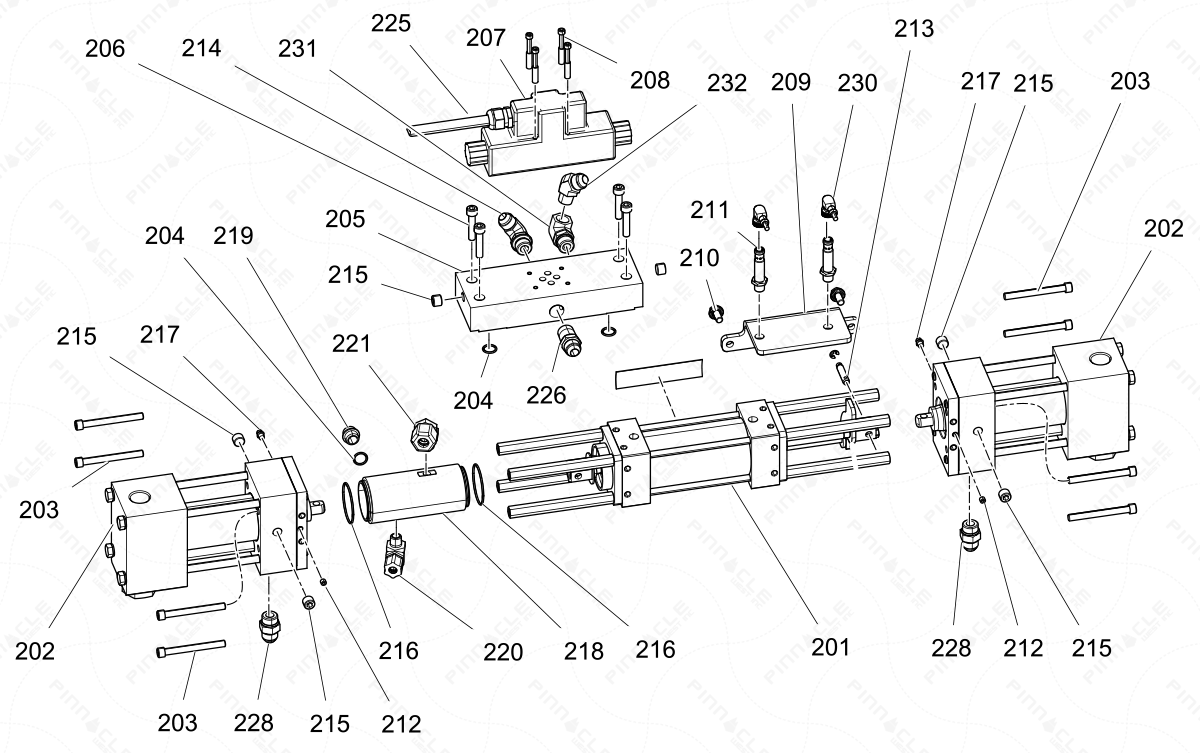

Reactor 2 H-40 Proportioner Assembly Exploded Diagram

Grouped product items
No. Item No. Product Name Price Qty
201 17G499 KIT, CYLINDER, HYD, W/SPACERS
$3,750.00
202 17G597 KIT, PROPORTIONER, 120
$7,971.20
203 295824 SCREW, SHC, 5/16-24 X 3" LG
$14.00
204 112793 PACKING, O-RING
$7.15
205 17G531 KIT, MANIFOLD, HYD, HR2
$888.00
206 113467 SCREW, CAP, SOCKET, HD
$4.85
207 120299 VALVE, DIRECTIONAL, HYDRAULIC
$934.00
208 C19986 SCREW, CAP,SH,10-24 X 1.75
$12.90
210 111800 SCREW, CAP, HEX HD
$5.95
211 17G605 KIT, PROX SENSOR
$374.00
212 M70430 SCREW, SS, CUP, 1/4-28 X .19
$5.40
213 296653 KIT, PIN, CLEVIS
$175.00
214 121312 FITTING, ELBOW, MA, 3/4 SAE X 1/2 JIC
$16.20
215 295225 PLUG, PIPE, FLUSH
$9.00
216 106258 PACKING, O-RING
$11.70
217 295229 FITTING, GREASE, 1/4-28
$5.05
218 261863 KIT, LUBE CYLINDER AND PLATE
$291.00
219 295829 FITTING, PLUG, 3/8 MPT X .343
$14.00
220 295826 FITTING, ELBOW, 90, 1/4 MPT X 3/8" T
$21.90
221 295397 FITTING, ELBOW, 3/8 MPT X 1/2"
$42.90
225 17G690 KIT, HARNESS, VALVE, SOLENOI, HR2
$522.00
226 121319 FITTING, ADAPTER, 1/2NPT X 1/2JIC
$13.40
228 121309 FITTING, CONN, 3/4 SAE X 1/2 JIC
$9.20
230 17G669 KIT, CABLE, GCA
$346.00
232 122533 FITTING, 45 DEG ELBOW #8 JIC X 3/8 NPT
$11.80
