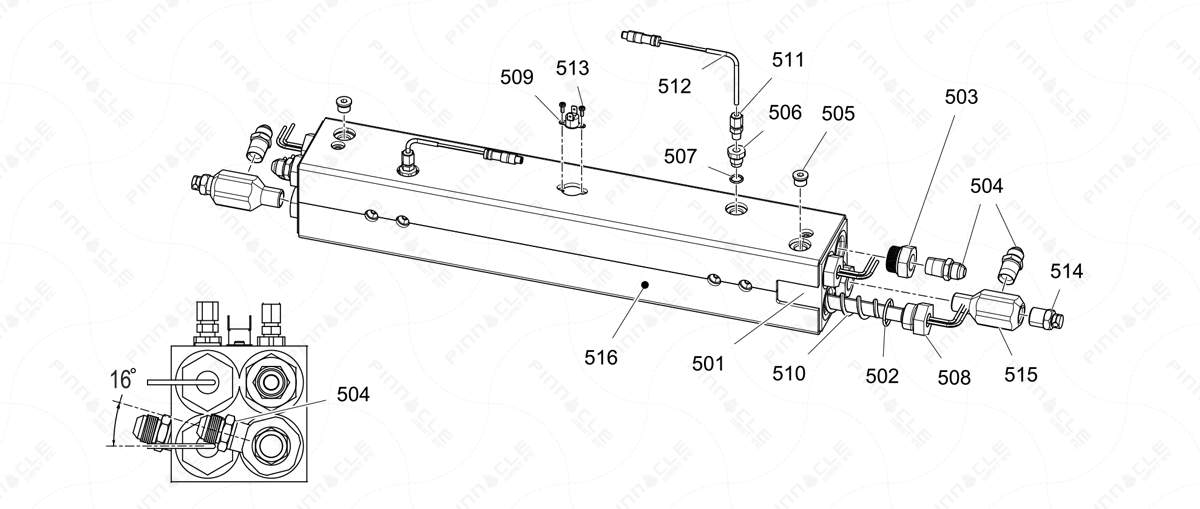

Reactor 2 H-Series 10.2kw 2 Zone Heater Exploded Diagram

Grouped product items
No.	Item No.	Product Name	Price
501	17G647	KIT, HEATER, 10.2KW, 2 ZONE, RTD More Info >	$4,940.00
502	124132	O-RING More Info >	$4.05
503	15H302	FITTING, RDCR, 1-3/16 SAE X 1/2NPT More Info >	$52.75
504	121319	FITTING, ADAPTER, 1/2NPT X 1/2JIC More Info >	$14.00
505	15H304	FITTING, PLUG, HOLLOW HEX 9/16 More Info >	$17.70
506	15H306	ADAPTER, THERMOCOUPLE More Info >	$123.00
507	120336	PACKING, O-RING More Info >	$16.90
508	16A110	HEATER, IMMERSION, (2550W, 230V) More Info >	$657.00
509	15B137	SWITCH, OVER TEMP. More Info >	$95.80
510	15B135	MIXER, IMMERSION HEATER More Info >	$66.50
511	123325	FITTING, COMPRESSION, 1/8 NPT, SS More Info >	$83.00
512	24L973	KIT, HEATER RTD More Info >	$837.00
514	248187	KIT, RUPTURE DISK ASSY More Info >	$114.00
515	15R873	FITTING TEE,1/2 MXFXF More Info >	$160.50
516	15M177	INSULATOR, FOAM, HEATER, HORIZONTAL More Info >	$87.50
