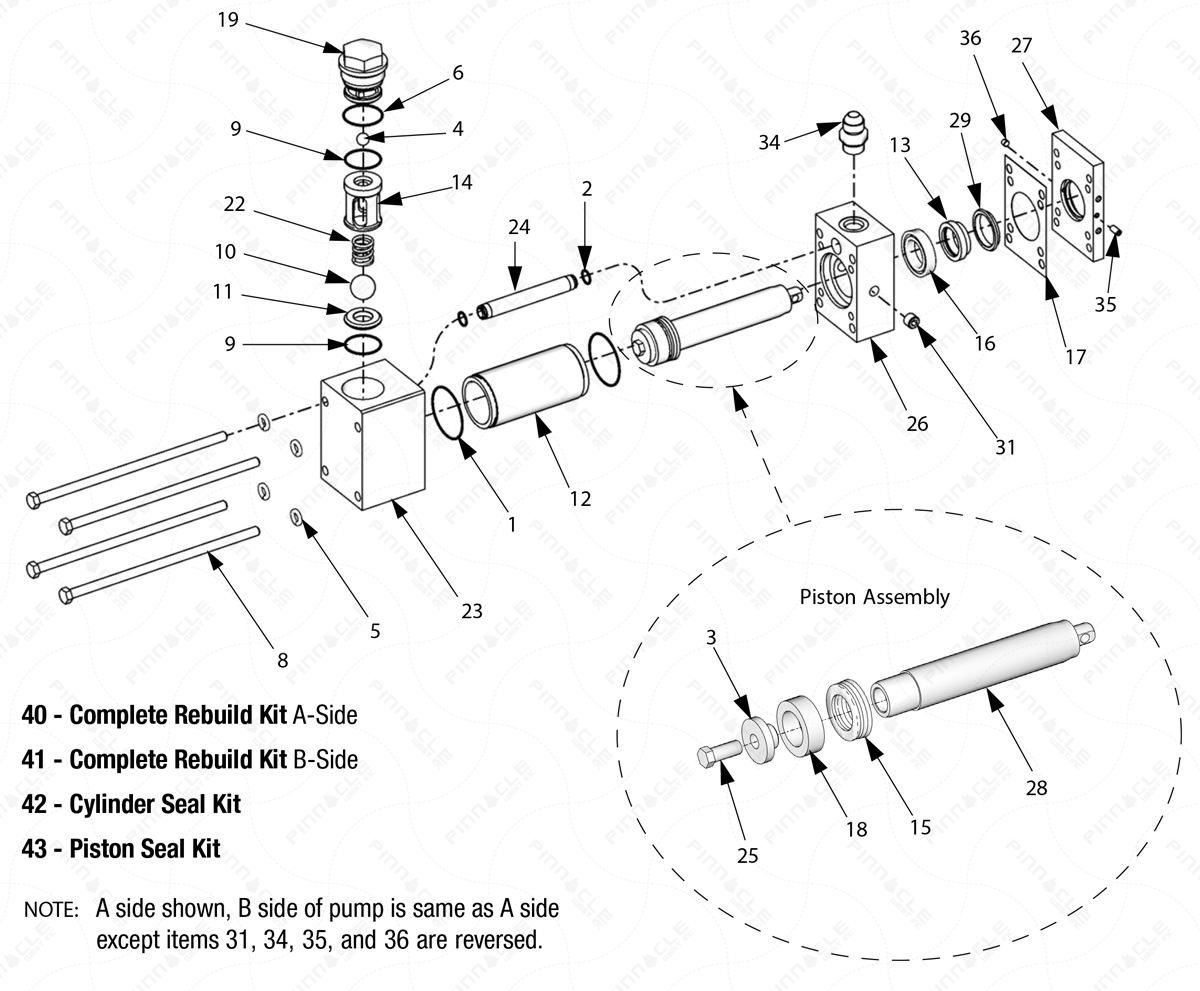

Reactor 2 H-XP3 Proportioning Pump Exploded Diagram

Grouped product items
No. Item No. Product Name Price Qty
1,2,6,9 261859 KIT, ORING, PUMP PROPORTIONER
$149.00
3 261883 KIT, CAP, PISTON, 140-80
$166.50
4 105445 BALL (.5000)
$8.05
5 261866 KIT, WASHERS, TIE ROD BOLTS
$166.50
8 261865 KIT, TIE ROD BOLTS
$398.00
10 107167 BALL, SST
$60.30
11 193395 SEAT, CARBIDE
$148.00
12 261892 KIT, CYLINDER, 80
$828.00
13,16,17 261854 KIT, THROAT, 80
$807.00
14 261899 KIT, GUIDE, 1" BALL
$448.00
15,18,25 261847 KIT, PISTON, 80
$828.00
19 261867 KIT, CAP, PUMP BASE
$315.00
22 261897 KIT, SPRING
$116.00
23 261903 KIT, BASE, PUMP
$663.00
24 261898 KIT, TUBE, CROSS-OVER
$199.00
26 261901 KIT, FLANGE, OUTLET, 140-80
$315.00
27 261875 KIT, FLANGE, RETAINER
$247.00
28 261878 KIT, PISTON, CAP, 80
$915.00
29 261870 KIT, ADAPTER, THROAT, 80
$247.00
31 295225 PLUG, PIPE, FLUSH
$9.25
34 121309 FITTING, CONN, 3/4 SAE X 1/2 JIC
$9.45
35 295229 FITTING, GREASE, 1/4-28
$5.20
36 M70430 SCREW, SS, CUP, 1/4-28 X .19
$5.60
40 25M460 KIT, COMPLETE 80 PUMP A-SIDE
$1,290.00
41 25M461 KIT, COMPLETE 80 PUMP B-SIDE
$1,270.00
