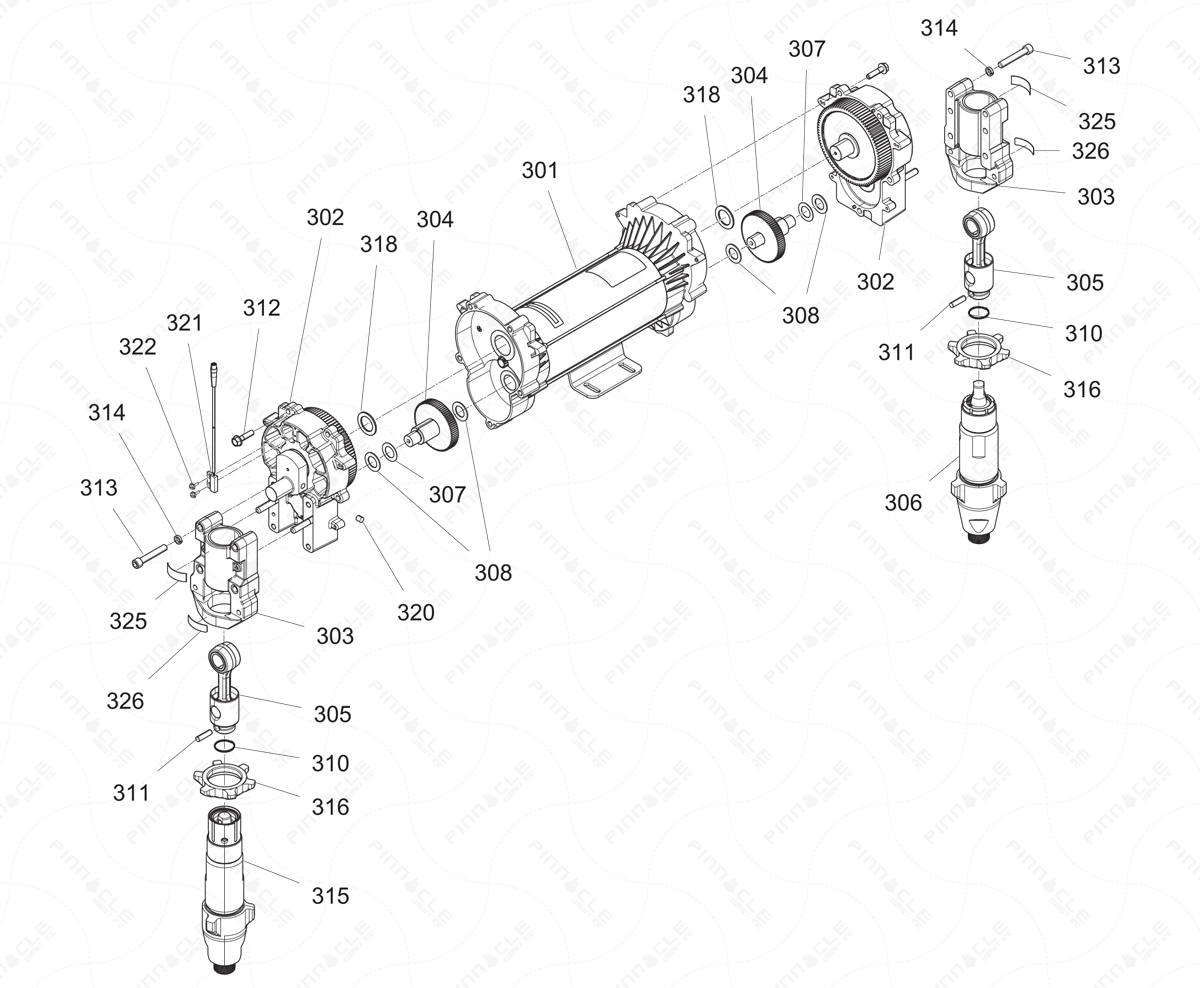

Reactor 2 I-Series Proportioner Assembly Exploded Diagram

Grouped product items
No. Item No. Product Name Price Qty
301 24U051 KIT, MOTOR, BRUSHLESS, 2HP
$3,870.00
302 17W869 KIT, REPAIR, DRIVE HOUSING
$946.00
303 245927 KIT, REPAIR
$261.00
303 257355 KIT, REPAIR, HOUSING, BEARING
$306.00
304 287290 KIT, REPAIR, GEAR, 1095, 1595
$360.00
305 241279 KIT, REPL, CONN ROD
$478.00
306 245971 PUMP, DISPLACEMENT (.552/356.26)
$3,050.00
306 245972 PUMP, DISPL., .743/479.22
$3,920.00
307 114699 WASHER, THRUST
$6.75
308 114672 WASHER, THRUST
$6.75
310 183169 SPRING, RETAINING
$8.05
311 183210 PIN, STR, HDLS
$39.80
312 15C753 SCREW, MACH, TORX, HEX WASH
$6.95
313 114666 SCREW, CAP, SOCKET HD
$6.75
314 106115 WASHER, LOCK SPRING (HI-COLLAR)
$9.25
315 246831 PUMP, DISPL., W/LUBE, .552
$3,090.00
315 246832 PUMP, DISPL., W/LUBE, .743
$3,920.00
316 193031 NUT, RETAINING
$92.75
316 193394 NUT, RETAINING
$44.00
318 116192 WASHER, THRUST
$6.75
320 116618 MAGNET
$13.20
321 24T878 SWITCH, REED, M8 4-PIN
$429.00
322 127301 SCREW, HXHD, THD CUT, 4-40 X .375
$5.95
