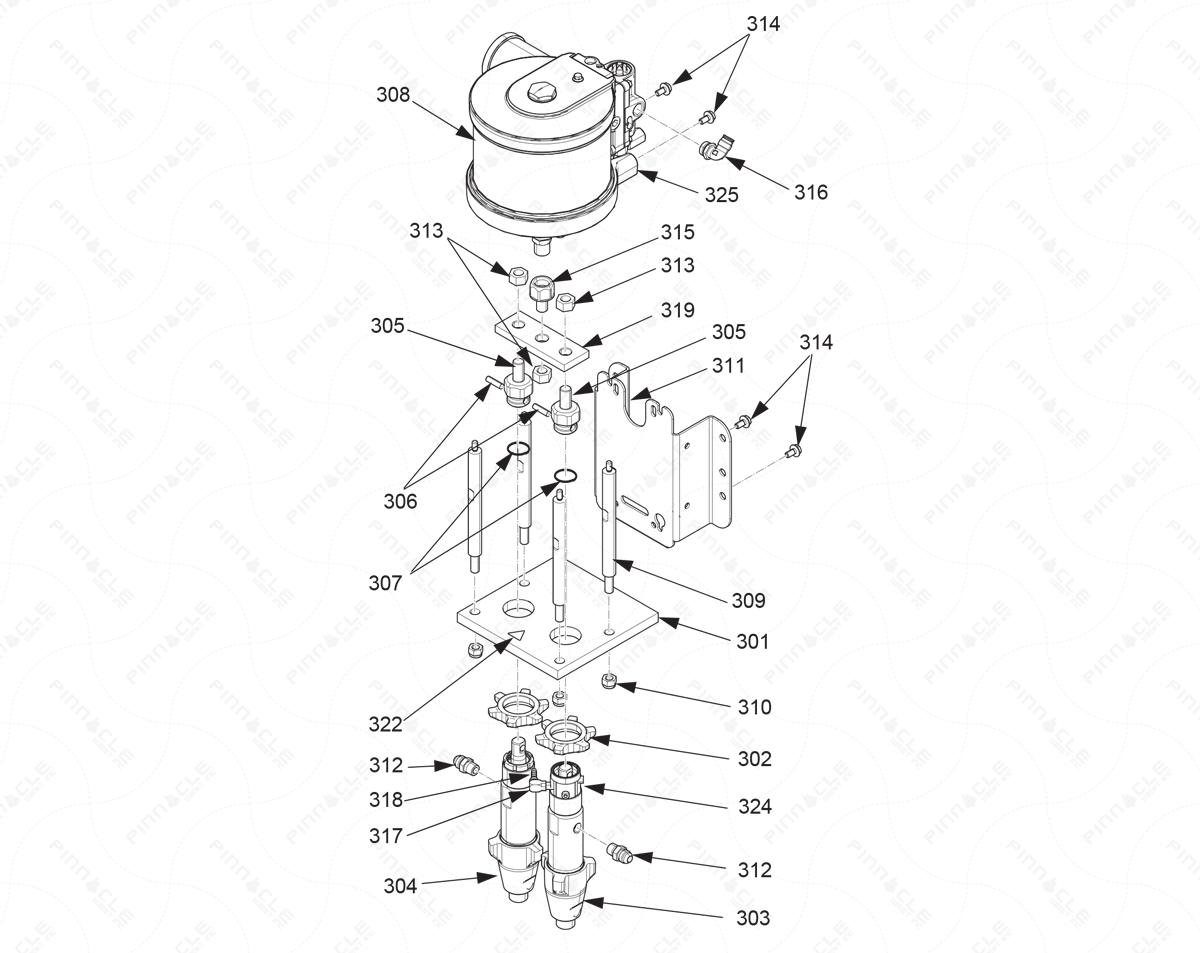

Reactor A-Series Air Motor Pump Assembly Exploded Diagram

Grouped product items
No. Item No. Product Name Price Qty
301 16G915 PLATE, MOUNTING, CYLINDER
$475.00
302 193031 NUT, RETAINING
$92.75
303 246831 PUMP, DISPL., W/LUBE, .552
$3,090.00
303 24Y175 KIT, PUMP, W/LUBE, .396
$1,605.00
304 24Y174 KIT, PUMP, .396
$1,390.00
304 245971 PUMP, DISPLACEMENT (.552/356.26)
$3,050.00
305 15J132 LINK, CONNECTING
$102.00
306 183210 PIN, STR, HDLS
$39.80
306 176818 PIN, STR, HDLS
$17.60
307 183169 SPRING, RETAINING
$8.05
307 176817 POWER SUPPLY, 24V
$8.05
308 M12LP0 KIT, MOTOR, AIR, 6.0 IN, PARK, A25
$4,000.00
309 16G929 ROD, TIE
$185.00
310 125266 NUT, LOCK, NYLON, M12
$2.15
311 16G926 BRACKET, PUMP MOUNTING
$200.00
312 121310 FITTING, CONN, 1/4 NPT X 1/2 JIC
$9.00
312 117833 ADAPTER, STRT., 3/8NPT X 3/4-16 JIC
$7.90
313 120553 NUT, CENTER LOCK, 5/8-18
$2.55
314 111799 SCREW, CAP, HEX HD
$8.70
315 16G914 ADAPTER, ROD
$121.00
317 15K783 FITTING, ELBOW, SAE SHORT 1/8
$11.50
318 116746 FITTING, BARBED, PLATED
$13.90
319 16G916 PLATE, YOKE, PUMP
$118.50
324 100139 Pipe Plug
$9.60
325 15B565 Ball Valve
$27.00
