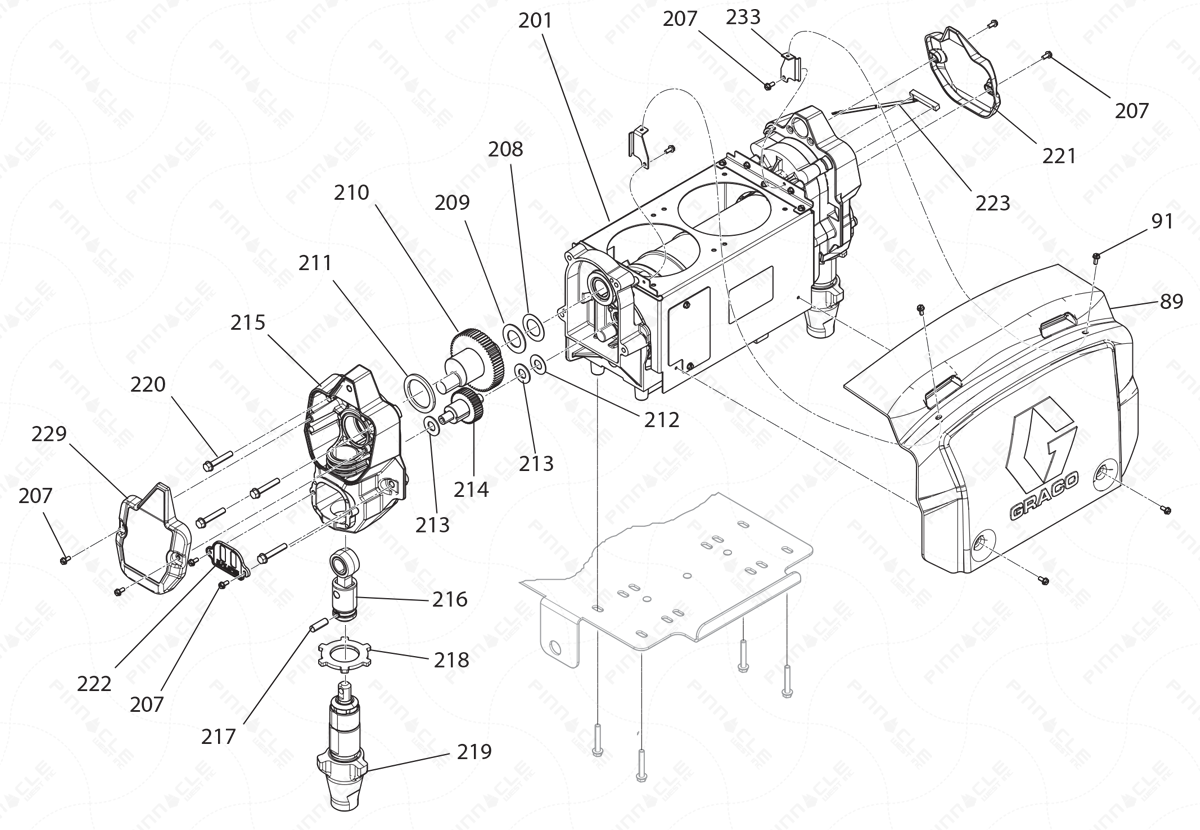

Reactor E-10hp Proportioner Assembly Exploded Diagram

Grouped product items
No. Item No. Product Name Price Qty
201 24T758 KIT, MOTOR, REPLACEMENT, E-10HP
$3,150.00
89 24U001 KIT, COVER, PROPORT, E-10HP
$652.00
207 115492 SCREW, MACH, SLOT HEX WASH HD
$6.75
208, 209, 210, 211 300001 KIT, REPAIR, CRANKSHAFT
$365.00
212 116073 BEARING, THRUST
$6.75
213 116079 BEARING, THRUST
$6.75
214 244242 KIT, REPAIR, COMBINATION GEAR
$198.50
215 287055 KIT, REPAIR, DRIVE HOUSING
$243.50
216 287053 KIT, REPAIR, CONN ROD
$129.50
217 196762 PIN, STRAIGHT
$9.05
218 195150 NUT, JAM, PUMP
$10.70
219 24L006 KIT, PUMP, DISPLACEMENT, E-10
$1,145.00
220 117493 SCREW, MACH, HEX WSHER HD
$6.75
221 300002 KIT, COVER W/SWITCH, E-10HP
$277.50
222 15B589 COVER, PUMP ROD
$6.75
223 117770 SWITCH, REED W/CABLE
$119.00
224 24K982 KIT, MAGNET, DISC
$43.30
227 115711 TAPE, FOAM 1/2" WIDE
$13.90
229 300003 KIT, COVER, E-10HP
$140.50
233 16W162 BRACKET, SHROUD TAB, E-10HP
$24.00
