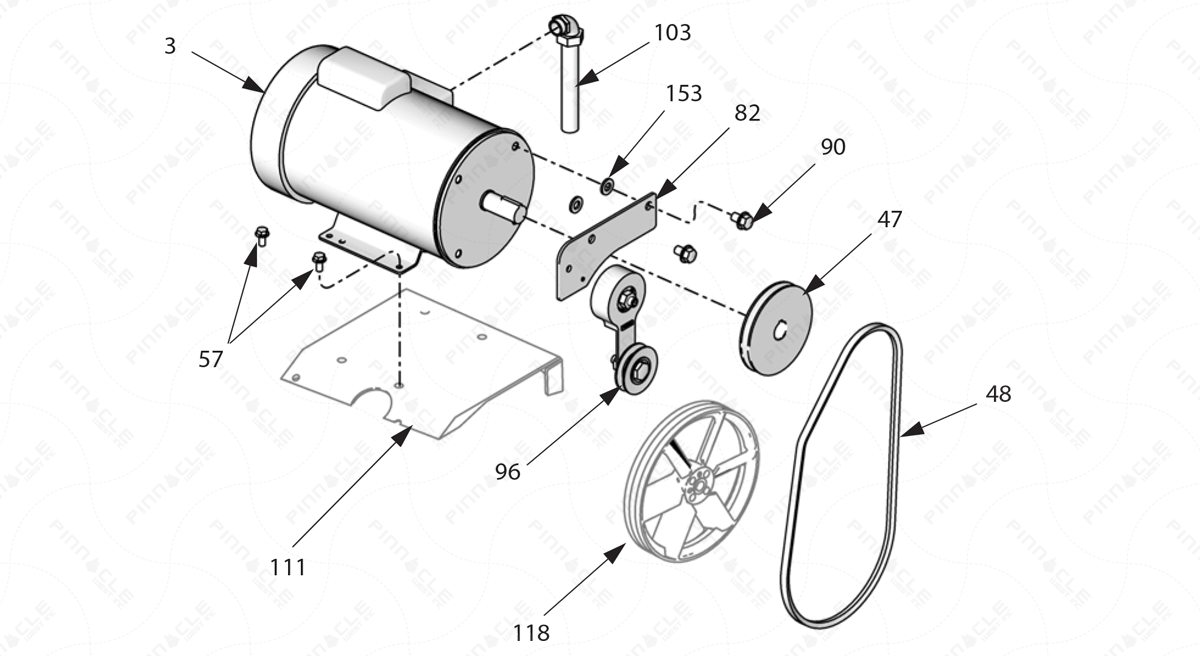

Reactor H-Series Electric Motor Exploded Diagram

Grouped product items
No.	Item No.	Product Name	Price
3	247816	KIT, MOTOR, 230 VAC, 4.0 HP More Info >	$3,050.00
3	247810	KIT, MOTOR, 5HP, H40 More Info >	$3,320.00
3	247785	KIT, MOTOR, 7.5HP, 3PH, 230V/480V More Info >	$2,980.00
47	247845	KIT, PULLEY, DRIVE, VEE More Info >	$178.00
48	803889	BELT, AX46 More Info >	$35.60
57	113802	SCREW, HEX HD, FLANGED More Info >	$6.75
82	15H207	BRACKET, TENSIONER More Info >	$79.75
90	111802	SCREW, CAP, HEX HD More Info >	$11.10
96	247853	KIT, ADJUSTER, BELT, TENSIONER More Info >	$311.00
103	247814	KIT, CONDUIT, MTR PWR, 1PH, H40 More Info >	$562.00
111	247822	KIT, BRACKET, MOTOR MOUNT More Info >	$1,325.00
118	247856	KIT, PULLEY, FAN More Info >	$333.00
118	247857	KIT, PULLEY, FAN More Info >	$333.00
153	104373	WASHER, THRUST More Info >	$48.70
