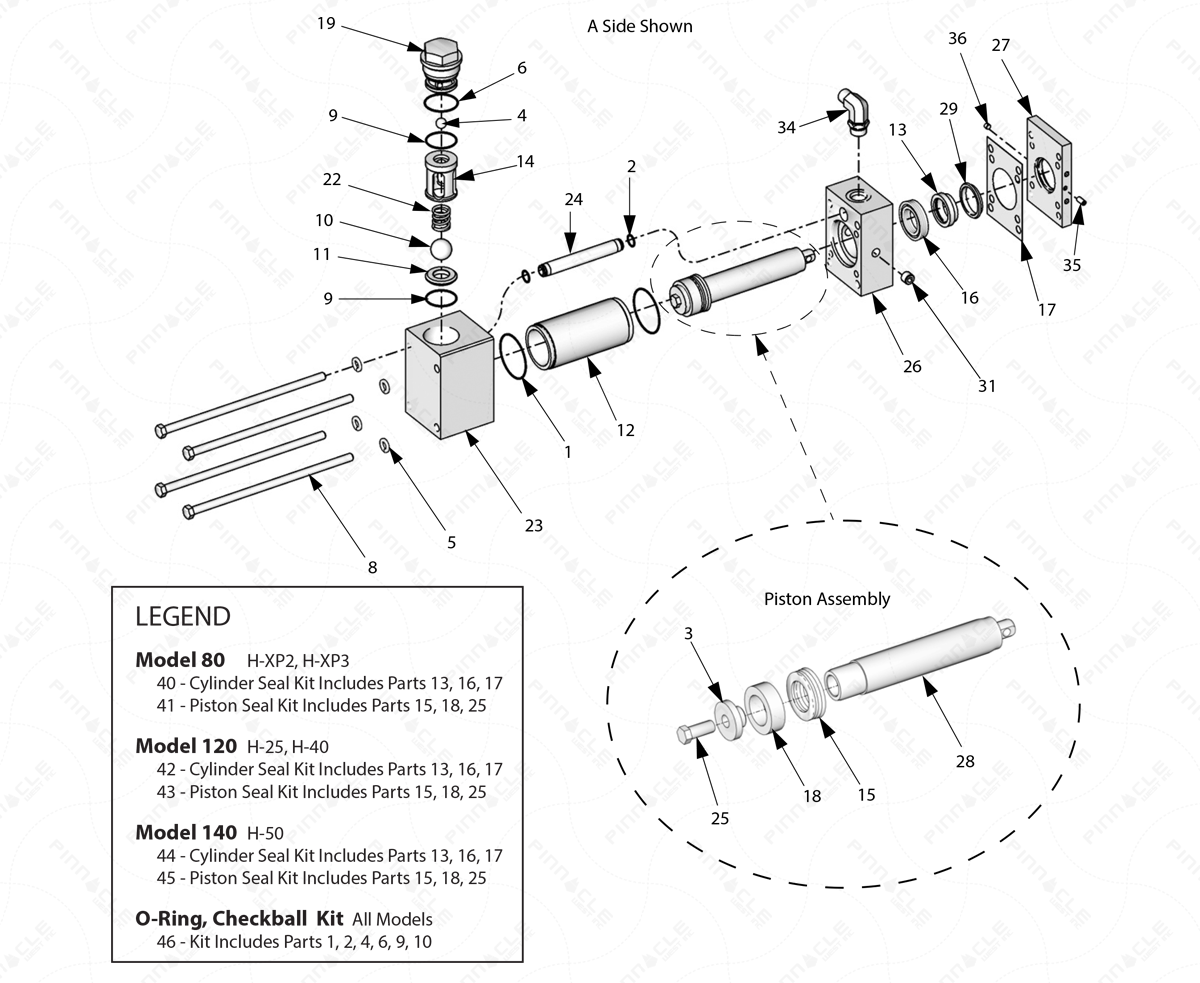

Reactor H-Series Proportioning Pump Exploded Diagram

Grouped product items
No. Item No. Product Name Price Qty
3 261883 KIT, CAP, PISTON, 140-80
$162.00
4 105445 BALL (.5000)
$7.85
5 261866 KIT, WASHERS, TIE ROD BOLTS
$162.00
8 261865 KIT, TIE ROD BOLTS
$386.00
10 107167 BALL, SST
$56.40
11 193395 SEAT, CARBIDE
$144.00
12 261890 KIT, CYLINDER, 120
$803.00
12 247583 KIT, CYLINDER, 140
$803.00
12 261892 KIT, CYLINDER, 80
$803.00
14 261899 KIT, GUIDE, 1" BALL
$435.00
19 261867 KIT, CAP, PUMP BASE
$305.00
22 261897 KIT, SPRING
$112.50
23 261903 KIT, BASE, PUMP
$644.00
24 261898 KIT, TUBE, CROSS-OVER
$193.00
26 261901 KIT, FLANGE, OUTLET, 140-80
$305.00
27 261875 KIT, FLANGE, RETAINER
$239.50
28 261876 KIT, PISTON, CAP, 120
$888.00
28 261878 KIT, PISTON, CAP, 80
$888.00
28 247585 KIT, PISTON, 140
$888.00
29 247587 KIT, ADAPTER, THROAT, 140
$239.50
29 261868 KIT, ADAPTER, THROAT, 120
$239.50
29 261870 KIT, ADAPTER, THROAT, 80
$239.50
31 295225 PLUG, PIPE, FLUSH
$9.00
34 121312 FITTING, ELBOW, MA, 3/4 SAE X 1/2 JIC
$16.20
40 261854 KIT, THROAT, 80
$784.00
41 261847 KIT, PISTON, 80
$803.00
42 261852 KIT, THROAT, 120
$803.00
43 261845 KIT, PISTON, 120
$803.00
44 247581 KIT, SEAL, CYLINDER, 140
$803.00
45 247579 KIT, SEAL, PISTON, 140
$803.00
46 261859 KIT, ORING, PUMP PROPORTIONER
$145.00
