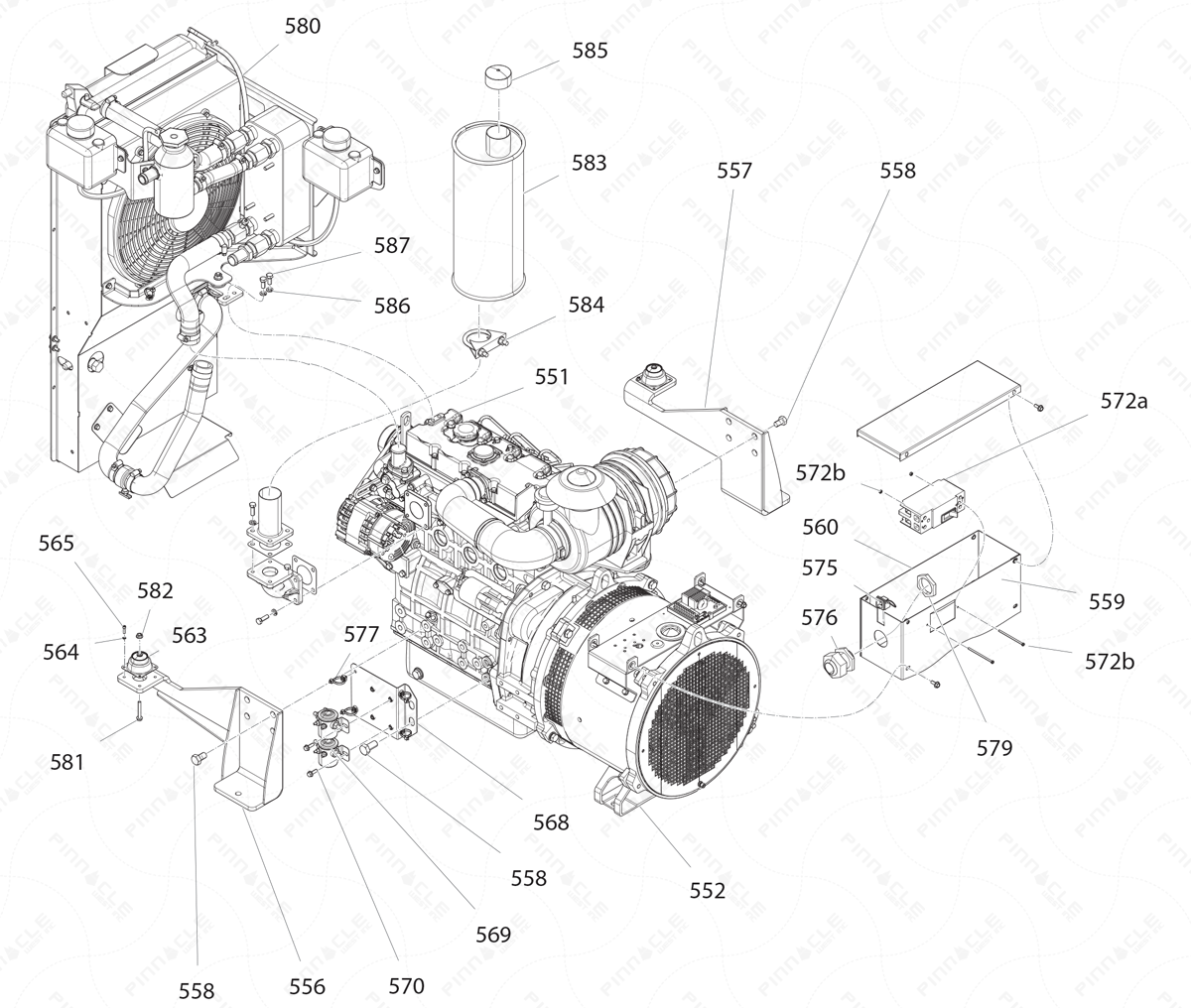

Reactor I-Series Diesel Generator Exploded Diagram

Grouped product items
No. Item No. Product Name Price Qty
552 24R079 KIT, ALTERNATOR, REPAIR
$13,462.00
556 16J883 BRACKET, ENGINE MOUNT, LEFT, PAINTED
$586.00
557 16J884 BRACKET, ENGINE MOUNT, RIGHT, PAINT
$586.00
558 125532 SCREW, M14 HEX HEAD X 30MM LONG
$11.10
563 125394 ISOLATOR, MOUNT, RADIATOR, BOTTOM
$198.00
564 100079 WASHER LOCK, SPRING
$13.50
565 106245 SCREW, SCH, 8-32 UNRC-3A X.625
$5.80
569 24L963 KIT, ENGINE RELAY
$419.00
570 113161 SCREW, FLANGE, HEX HD
$13.50
572, 572a, 572b 24L965 KIT, 90A BREAKER
$1,690.00
575 125631 BUSHING, CABLE, LAYIN STRAIN RELIEF
$16.20
576 255047 KIT, BUSHING, STRAIN RLF, M40
$127.00
577 125625 TIE, CABLE, FIR TREE
$6.40
582 115942 NUT, HEX, FLANGE HEAD
$11.30
586 104572 WASHER, LOCK SPRING
$13.50
587 105328 SCREW, CAP HEX
$13.50
