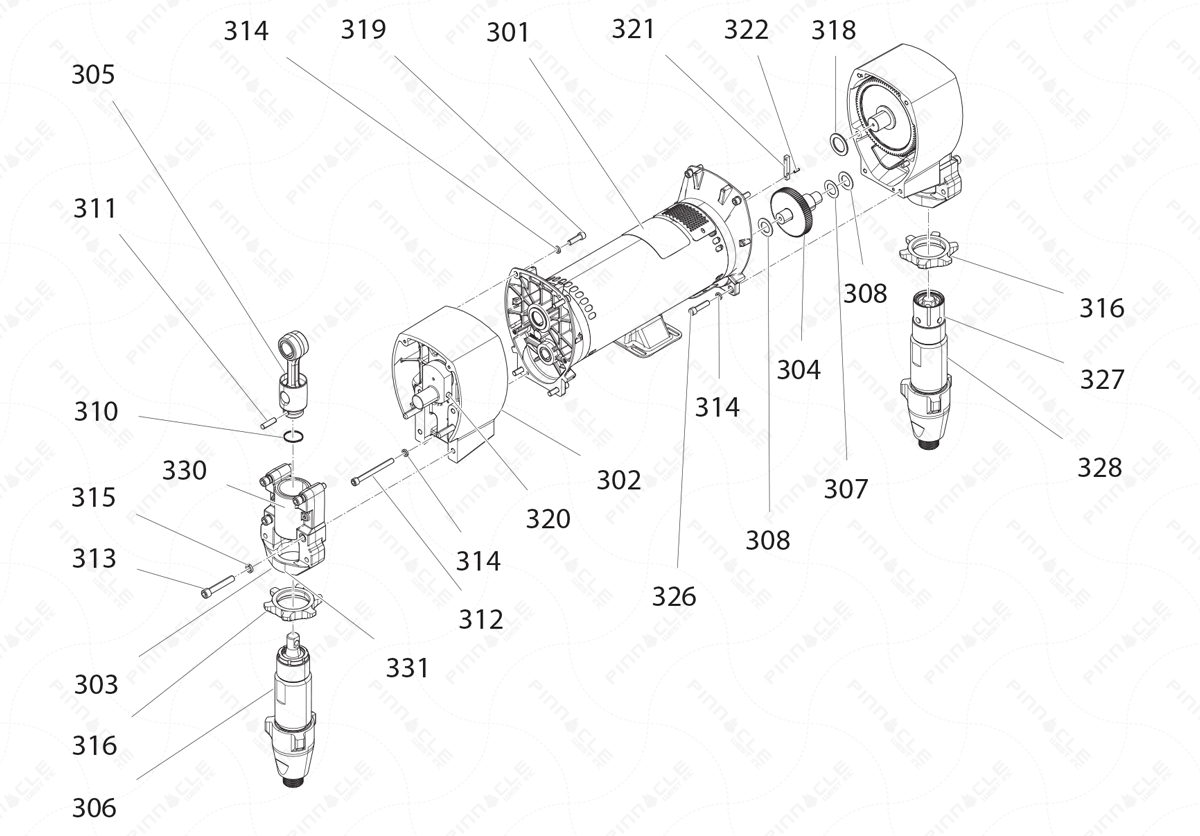

Reactor I-Series Proportioner Assembly Exploded Diagram

Grouped product items
No. Item No. Product Name Price Qty
301 24L923 KIT, ELECTRIC MOTOR
$6,620.00
302 245969 HOUSING, DRIVE, 1595 W/SWITCH
$1,460.00
303 245927 KIT, REPAIR
$261.00
303 257355 KIT, REPAIR, HOUSING, BEARING
$306.00
305 241279 KIT, REPL, CONN ROD
$478.00
306 245971 PUMP, DISPLACEMENT (.552/356.26)
$3,050.00
306 245972 PUMP, DISPL., .743/479.22
$3,920.00
307 114699 WASHER, THRUST
$6.75
308 114672 WASHER, THRUST
$6.75
310 183169 SPRING, RETAINING
$8.05
311 183210 PIN, STR, HDLS
$39.80
312 114686 SCREW,CAP,SOCKET HD
$5.55
313 114666 SCREW, CAP, SOCKET HD
$6.75
314 104008 WASHER, LOCK, SPRING
$15.20
315 106115 WASHER, LOCK SPRING (HI-COLLAR)
$8.90
316 193394 NUT, RETAINING
$44.00
316 193031 NUT, RETAINING
$92.75
318 116192 WASHER, THRUST
$6.75
319 101864 SCREW, CAP, SCHD
$16.70
320 116618 MAGNET
$13.20
321 125757 SWITCH, READ, M8-4PIN CABLE
$520.00
322 116838 PIN SPRING
$3.50
326 102962 SCREW, CAP SCH, 5/16-18 X 1.250
$10.60
327 104765 PLUG, PIPE, HEADLESS, 1/8-27
$21.50
328 246832 PUMP, DISPL., W/LUBE, .743
$3,920.00
328 246831 PUMP, DISPL., W/LUBE, .552
$3,090.00
329 15C588 GUARD, FINGER
$34.80
