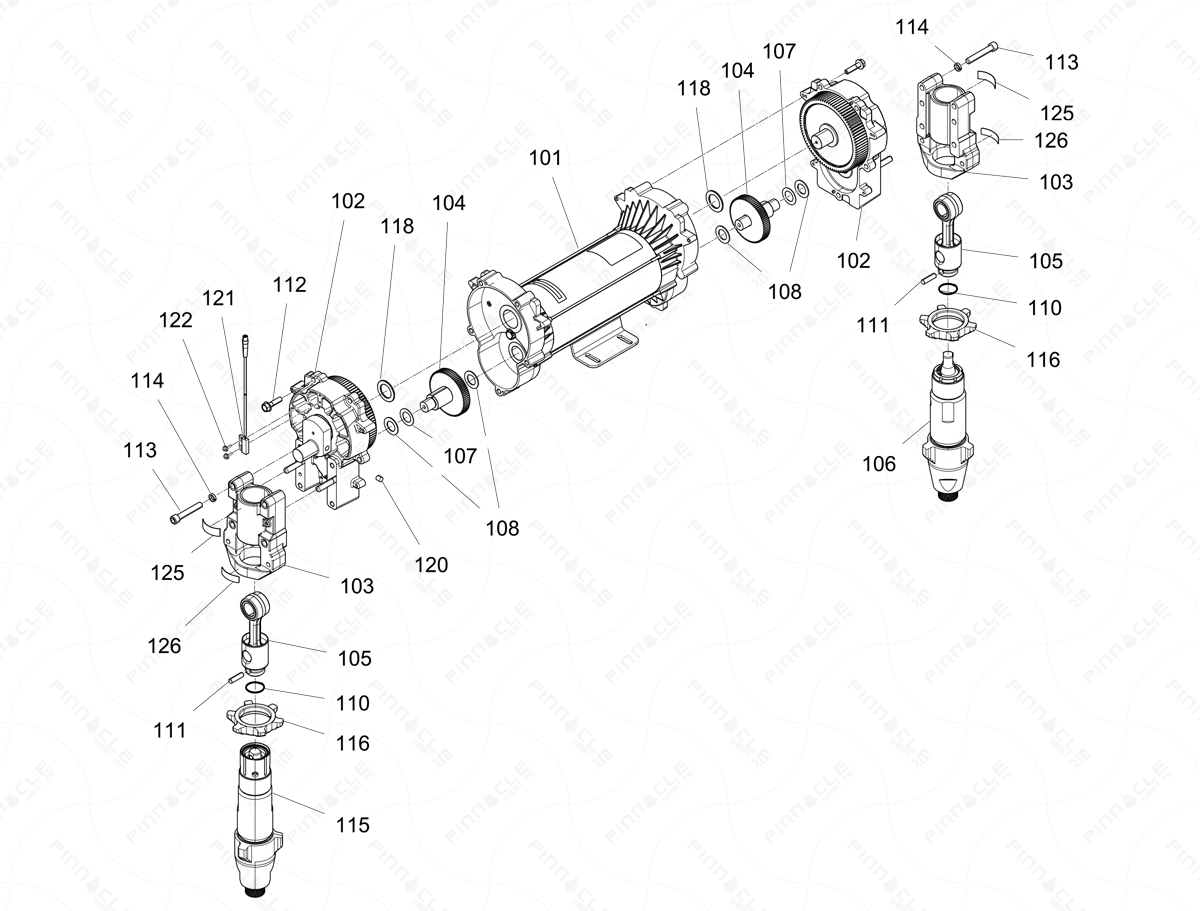

Reactor 2 E-Series Proportioner Module Exploded Diagram

Grouped product items
No. Item No. Product Name Price Qty
101 24U050 KIT, MOTOR, BRUSHLESS, 2HP
$3,600.00
102 24M417 KIT, REPAIR, DRIVE HOUSING
$921.00
103 257355 KIT, REPAIR, HOUSING, BEARING
$306.00
103 245927 KIT, REPAIR
$261.00
104 287290 KIT, REPAIR, GEAR, 1095, 1595
$360.00
105 241279 KIT, REPL, CONN ROD
$478.00
106 245971 PUMP, DISPLACEMENT (.552/356.26)
$3,050.00
106 245972 PUMP, DISPL., .743/479.22
$3,920.00
107 114699 WASHER, THRUST
$6.75
108 114672 WASHER, THRUST
$6.75
110 183169 SPRING, RETAINING
$8.05
111 183210 PIN, STR, HDLS
$39.80
112 15C753 SCREW, MACH, TORX, HEX WASH
$6.95
113 114666 SCREW, CAP, SOCKET HD
$6.75
114 106115 WASHER, LOCK SPRING (HI-COLLAR)
$9.25
115 246831 PUMP, DISPL., W/LUBE, .552
$3,090.00
115 246832 PUMP, DISPL., W/LUBE, .743
$3,920.00
116 193031 NUT, RETAINING
$92.75
116 193394 NUT, RETAINING
$44.00
118 116192 WASHER, THRUST
$6.75
120 116618 MAGNET
$13.20
121 24P728 SWITCH, REED, M8 4-PIN
$344.00
122 127301 SCREW, HXHD, THD CUT, 4-40 X .375
$5.95
