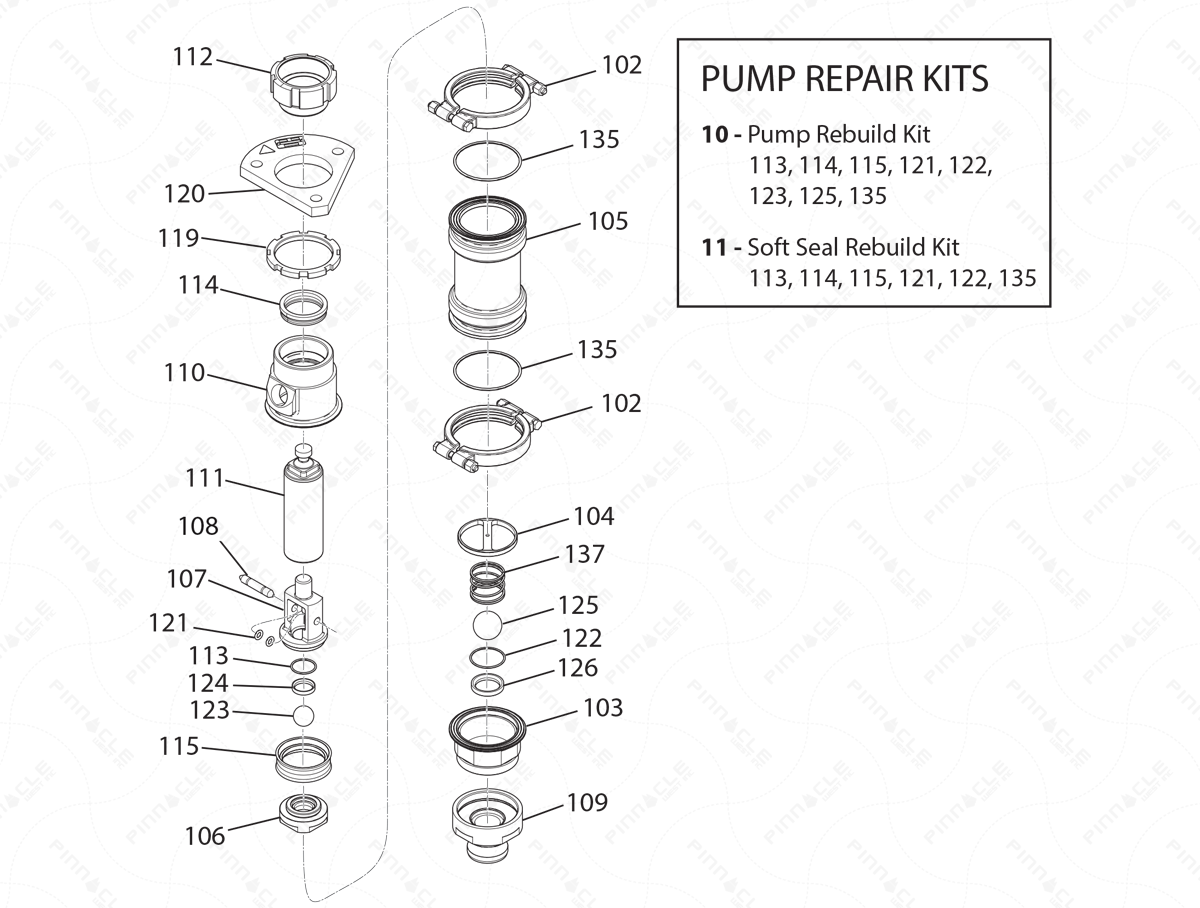

ToughTek M680a Pump Exploded Diagram

Grouped product items
No. Item No. Product Name Price Qty
103 16U796 HOUSING, INLET
$441.00
104 16U797 STOP, BALL
$138.50
105 16U798 CYLINDER, PUMP
$1,625.00
106 16U799 VALVE, PISTON
$162.50
107 16U800 HOLDER, VALVE PISTON
$433.00
108 16U801 STOP, UPPER BALL
$95.25
109 16V143 HOUSING, INLET, 2NPT
$559.00
110 16U803 HOUSING, OUTLET
$701.00
111 16U804 ROD, DISPLACEMENT
$608.00
112 16U805 NUT, PACKING
$209.50
123 102973 BALL, METALLIC
$73.50
114 16W492 KIT, REPAIR, 3PK, SEAL, THROAT
$334.00
119 16U977 NUT, JAM
$145.00
120 16U976 PLATE, MOUNTING, CYLINDER
$350.00
115 16W491 KIT, REPAIR, 3PK, SEAL, PISTON
$427.00
121 16W519 KIT, REPAIR, 6PK, ORING, BALL STP
$169.00
135 16W490 KIT, REPAIR, 10PK, ORING, CYL END
$196.30
137 16W472 SPRING, GUIDE, BALL
$47.80
102 16E963 CLAMP, TRI, BOLTED, 4"
$177.50
113, 124 16W509 KIT, REPAIR, SEAT, PISTON
$193.50
122 24U173 KIT, REBUILD, SOFT SEAL
$381.00
125 16W508 KIT, REPAIR, PUMP REBUILD
$493.00
126 16W510 KIT, REPAIR, SEAT, INLET
$264.50
