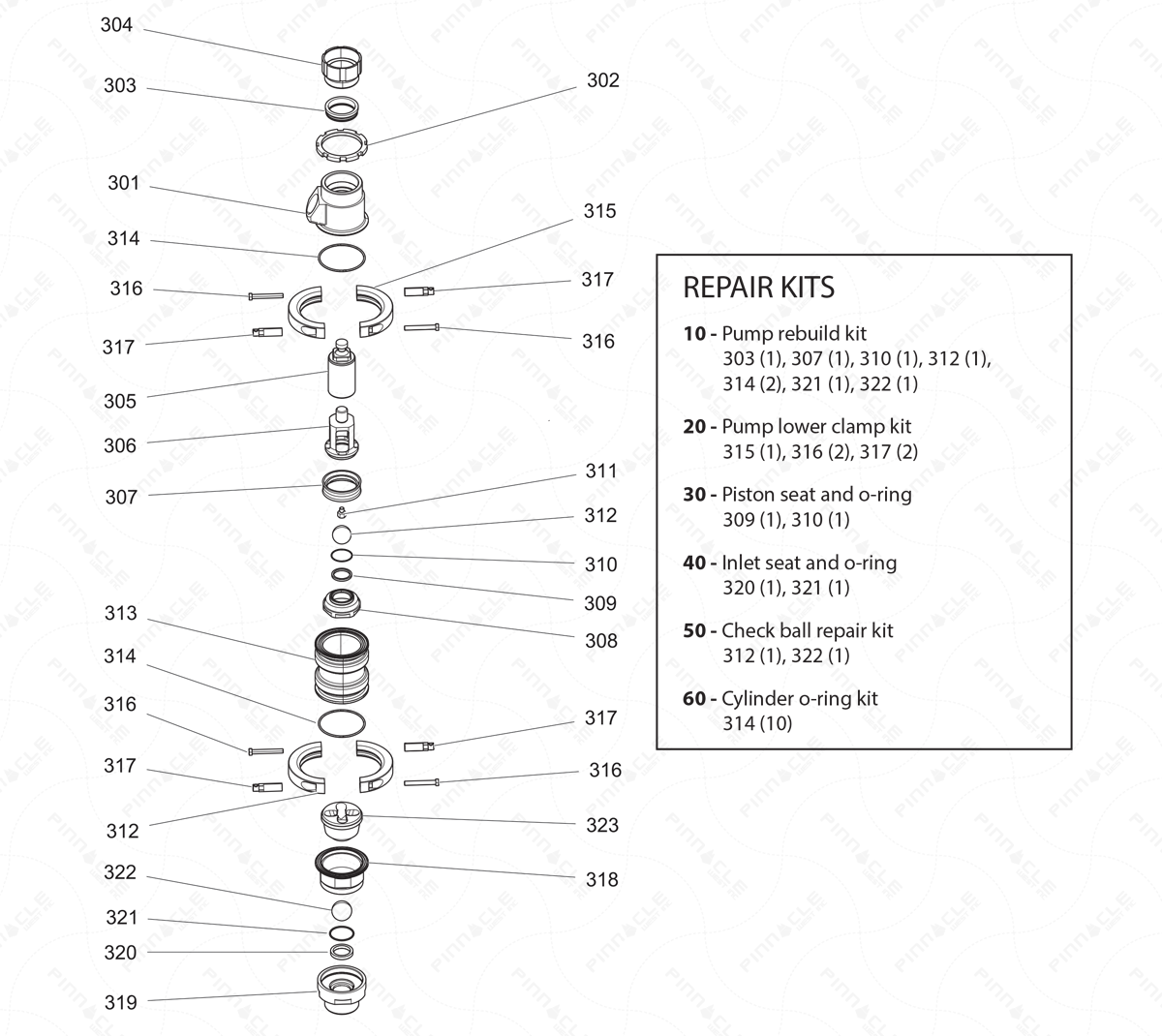

ToughTek S340e Pump Exploded Diagram

Grouped product items
No. Item No. Product Name Price Qty
10, 314, 321 25A233 KIT, REBUILD, PUMP, S340E
$478.00
20, 315, 316, 317 17G456 CLAMP, SANITARY, DBL BLTED, SST, 4"
$385.00
30, 309, 310 17G862 KIT, REPAIR, SEAT, PISTON
$155.50
40, 320 17G863 KIT, REPAIR, SEAT, INLET
$206.00
50 25A467 KIT, REPAIR, CHECK BALLS, S340E
$240.50
60, 314 16W490 KIT, REPAIR, 10PK, ORING, CYL END
$196.30
301 17G220 HOUSING, OUTLET, 680
$929.00
302 17G859 NUT, JAM, BLACK
$150.00
303 17G865 KIT, BEARING, SEAL, THROAT, 3PACK
$282.00
304 17G321 NUT, PACKING, 340E
$205.00
305 17G331 ROD, SHORT, DISPLACEMENT
$419.00
306 17G795 GUIDE, BALL, PISTON
$718.00
307 16W491 KIT, REPAIR, 3PK, SEAL, PISTON
$427.00
308 17G794 VALVE, PISTON
$260.00
311 17G817 STOP, BALL, PISTON
$152.50
312 17G798 BALL, NEOPRENE, CS CORE, 1.625
$72.25
313 17G330 CYLINDER, SHORT, PUMP
$1,060.00
318 17G226 HOUSING, INLET, BALLGUIDE
$477.50
319 17G221 HOUSING, INLET
$356.00
322 15H833 BALL, NEO/SST CORE, 1.75"
$178.20
323 17G793 GUIDE, BALL, INLET
$597.00
